vertical ground loop





vertical ground loop

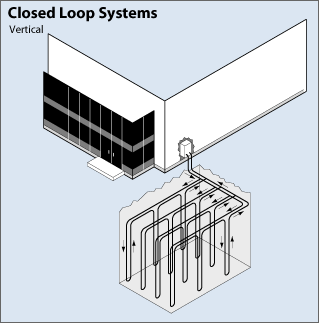

A type of closed-loop geothermal heat pump system in which the fluid-filled plastic heat exchanger pipes are laid out in a plane perpendicular to the ground surface. For a vertical system, holes (approximately four inches in diameter) are drilled about 20 feet apart and 100 to 400 feet deep. Into these holes go two pipes that are connected at the bottom with a U-bend to form a loop. The vertical loops are connected with horizontal pipe (i.e., manifold), placed in trenches, and connected to the heat pump in the building. Large commercial buildings and schools often use vertical systems because the land area required for horizontal ground loops would be prohibitive. Vertical loops are also used where the soil is too shallow for trenching, or for existing buildings, as they minimize the disturbance to landscaping.
