salt dome

salt dome

A salt dome, also called a diapsis, is a mass of evaporite minerals which has pierced the strata above it and domed the strata near the surface. The flow of the relatively plastic salt into a dome may be the result of a difference in density between the salt and the overlying rock, but the process is not completely understood. Salt domes often form natural traps for petroleum, and occasionally penetrate to the surface to form salt glaciers.

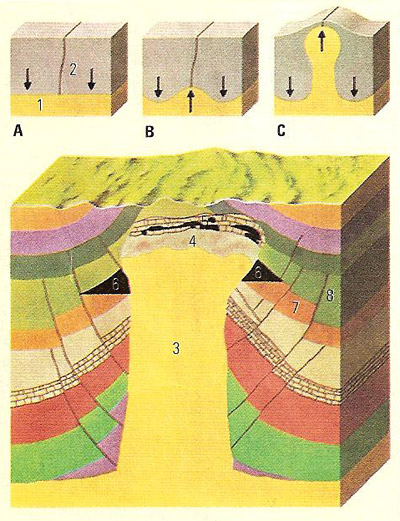

Key to diagram

1) halite beds (salt)
2) sedimentary overburden
3) salt plug
4) gypsum and anhydrite
5) porous limestone caprock
6) oil trap
7) sand
8) shale
A) sedimentary beds
overlying halite beds
B) pressure of denser overlying beds causing peripheral sinking and salt to rise up fissure
C) formation of salt plug and dome
