hyperboloid
 |
McDonnell Planetarium
|
A quadratic surface of which there are
two basic forms: a hyperboloid of one sheet, generated
by spinning a hyperbola around its conjugate
axis, and a hyperboloid of two sheets produced by rotating
a hyperbola about its transverse axis. The hyperboloid of one sheet, first
described by Archimedes, has some particularly
remarkable properties. In 1669 Christopher Wren, the architect who designed
St. Paul's Cathedral in London, showed that this kind if hyperboloid is
what mathematicians now call a ruled surface
– a surface composed of infinitely many straight lines. This fact
enables a close approximation to a hyperboloid to be made in the form of
a string model. Two circular disks, of the same size, are held parallel,
one exactly above the other, by a framework. Strings are then run through
holes near the circumference of one circle to corresponding holes in the
other circle that are a fixed distance further around the circumference.
Each string is perfectly straight but the surface that emerges takes the
curved form of a hyperboloid. For the same reason, a cube
spun rapidly on one of its corners will appear to describe a hyperbolic
curve when viewed side-on.

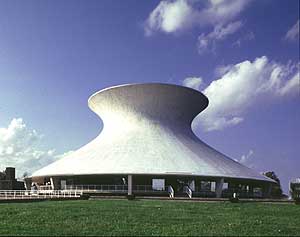

Hyperboloids are seen in the manmade world in the form of cooling towers
at power stations and, most strikingly, in the shape of the McDonnell Planetarium
in St. Louis, Missouri (shown above). The designer of this building, Gyo
Obata, chose the surface because the hyperbolic paths of some comets suggest
"the drama and excitement of space exploration."
