BETWEEN FIRE AND ICE: The Science of Heat - 6. Rays of Warmth


Figure 1. Sunset.

How a greenhouse works

Figure 2. How a greenhouse works.

Stand outside on a warm summer day and you can feel the Sun's heat on your face. But how does it reach you? There is nothing but 93 million miles of empty space between the Sun and the Earth. Heat can only travel by conduction or convection where there is matter. To cross empty space, it must move by a different means. The third method by which heat moves is called RADIATION.


Heat radiation, like light, consists of waves. Hat waves are also known as INFRARED waves. The only difference between infrared and ordinary light is that the waves of infrared are father apart. Both infrared and light waves travel at about 186,000 miles per second in empty space. At this speed, they take just over 8 minutes to go from the Sun to the Earth.


Experiment! banner


Warmth in Three Ways


You will need:


  • A hot-water bottle

    What to do:


    Ask an adult to fill the hot-water bottle with hot (but not boiling) water and to hold the bottle level. Touch the bottle. Next place your hand about an inch above the bottle. Finally hold your hand about an inch below the bottle. Try to decide how the heat reaches your skin in each case. Remember that heat can travel by more than one way at once. Explain why, when you hold your hand below the bottle, the heat that you feel cannot have travelled either by conduction or convection.


    Heat Rays and Matter

    The amount of heat radiation soaked up by a substance depends on what type of substance it is. Dark, rough materials are good absorbers of infrared. Light, smooth materials, however, bounce back, or reflect, most of the heat radiation that falls on them. For example, a dull, black surface will feel much hotter on a sunny day than a shiny, white surface.


    A material that reflects light like a mirror, such as metal foil, will also reflect most of the heat waves that strike it. This explains why spacecraft, which must remain cool inside even in permanent sunlight, are often wrapped in shiny metal foil.


    Experiment! banner


    Soaking Up the Heat

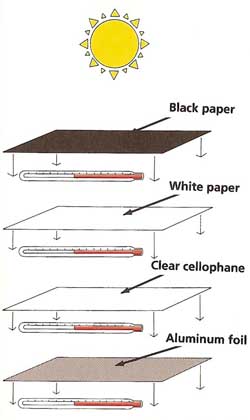

    heat absorption experiment


    You will need:


  • Four thermometers
  • A sheet of black paper
  • A sheet of white paper
  • A sheet of clear cellophane
  • A sheet of aluminium foil
  • Other colored paper and materials

    What to do:


    Lay the four thermometers near one another on a flat surface in the sunshine. Record their temperatures. Cover each thermometer with one of the sheets and leave them for about 20 minutes. Remove each sheet in turn and quickly read the temperature of the thermometer. Under which sheet was it the hottest and under which the coolest? What does this tell you about how well the different sheets absorb heat radiation?


    Taking it further:


    Experiment with sheets of other materials and colors. For example, does green paper absorb more heat radiation than yellow? Compare rough paper with smooth paper of the same color. Based on your results, what color clothes do you think it would be best to wear on a hot, sunny day?


    Experiment! banner


    Under Glass

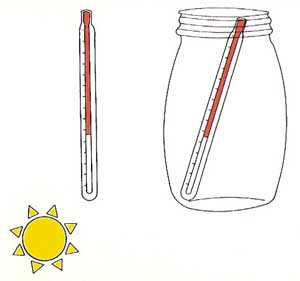

    greenhouse experiment


    You will need:


  • A glass jar
  • A clear plastic container
  • Two thermometers

    What to do:


    Lay the two thermometers next to each other outside in the sunshine. Take their readings. Place the jar over one of the thermometers. Read both thermometers every 15 minutes for two hours. Plot a graph of your results. Repeat the experiment with the clear plastic container instead of the jar. What can you deduce from your findings?


    A Trap for Sunlight

    Glass will let both light waves ad heat waves from the Sun pass easily through it. Any object that is under glass will absorb some of the Sun's heat. This object will then give off heat waves of its own. But the new heat waves will be farther apart than those that came directly from the Sun. These longer heat waves cannot pass through the glass, so they are trapped inside. As a result, the temperature of the air and objects under the glass rises (see Figure 2).


    This is how a greenhouse works. It traps heat from the Sun and uses it to speed the growth of plants. You can make a miniature greenhouse simply by putting a jay over a patch of grass on a lawn. A few days later the grass under the jar will have grown taller than the surrounding grass, because it has been kept warmer.


    The Earth: A Giant Greenhouse

    Some gases work like the glass in a greenhouse. In other words, they let heat radiation from the Sun reach the Earth, but block the longer heat waves travelling back up from the land and sea. One of these greenhouse gases is carbon dioxide. This is a substance that we breathe out and that plants take in. Plants turn the carbon dioxide into oxygen, which we need in order to live.


    One of the problems at present is that many human activities produce large amounts of carbon dioxide. These activities include burning gas in car engines and burning coal and oil in electricity-making power stations. At the same time, people are cutting down large areas of forest in places such as Brazil, so there are fewer plants to remove carbon dioxide from the atmosphere. The result is that the amount of carbon dioxide in the atmosphere is steadily going up. This is increasing the greenhouse effect and may soon cause average temperatures around the world to rise. Many scientists say that this is already happening and that we must tale immediate steps to cut the amount of carbon dioxide and other greenhouse gases going into the air.
