Genes are made up of DNA. Each chromosome contains many genes

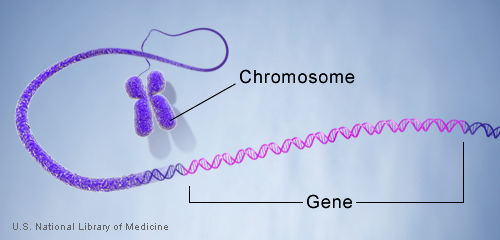

Figure 1. Genes are made up of DNA. Each chromosome contains many genes.


Figure 2. An allele is one of two or more variant forms of a gene at a particular location on a chromosome.

Chromosomal location of a gene

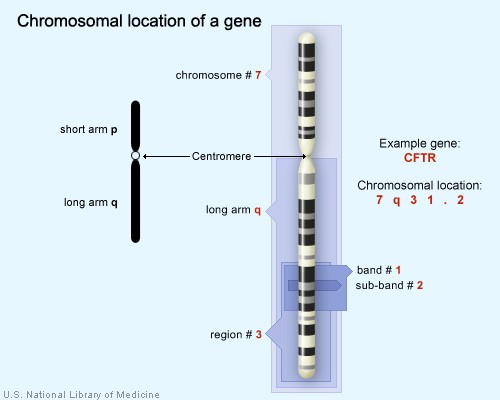

Figure 3. The CFTR gene is located on the long arm of chromosome 7 at position 7q31.2.

gene expression

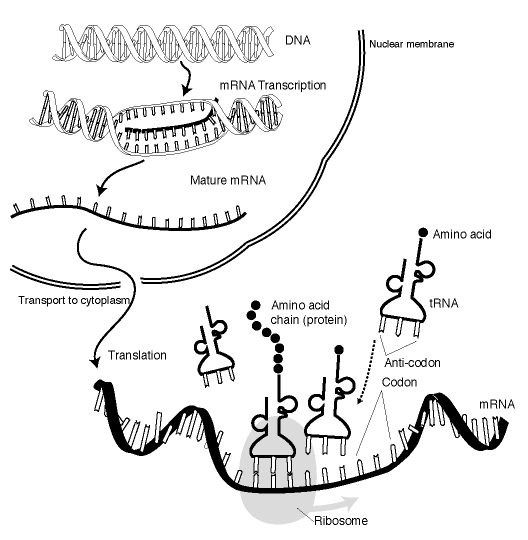

Figure 4. Gene expression.

The gene is the basic unit of heredity. A gene consists of a long sequence of DNA nucleotides which occupy a specific position (locus) on a chromosome (Fig 1). Genes can carry the code for synthesizing proteins and RNA molecules, and also regulate the transcription of RNA sequences.


In humans, genes vary in size from a few hundred DNA bases to more than 2 million bases. The Human Genome Project has estimated that humans have between 20,000 and 25,000 genes.


Every person has two copies of each gene, one inherited from each parent. Most genes are the same in all people, but a small number of genes (less than 1 percent of the total) are slightly different between people.


Location of a gene

Geneticists use maps to describe the location of a particular gene on a chromosome. One type of map uses the cytogenetic location to describe a gene's position. The cytogenetic location is based on a distinctive pattern of bands created when chromosomes are stained with certain chemicals. Another type of map uses the molecular location, a precise description of a gene's position on a chromosome. The molecular location is based on the sequence of DNA building blocks (base pairs) that make up the chromosome.


Cytogenetic location

Geneticists use a standardized way of describing a gene's cytogenetic location. In most cases, the location describes the position of a particular band on a stained chromosome (Figure 3):




It can also be written as a range of bands, if less is known about the exact location:




The combination of numbers and letters provide a gene's "address" on a chromosome. This address is made up of several parts:


· The chromosome on which the gene can be found. The first number or letter used to describe a gene's location represents the chromosome. Chromosomes 1 through 22 (the autosomes) are designated by their chromosome number. The sex chromosomes are designated by X or Y.


· The arm of the chromosome. Each chromosome is divided into two sections (arms) based on the location of a narrowing (constriction) called the centromere. By convention, the shorter arm is called p, and the longer arm is called q. The chromosome arm is the second part of the gene's address. For example, 5q is the long arm of chromosome 5, and Xp is the short arm of the X chromosome.


· The position of the gene on the p or q arm. The position of a gene is based on a distinctive pattern of light and dark bands that appear when the chromosome is stained in a certain way. The position is usually designated by two digits (representing a region and a band), which are sometimes followed by a decimal point and one or more additional digits (representing sub-bands within a light or dark area). The number indicating the gene position increases with distance from the centromere. For example: 14q21 represents position 21 on the long arm of chromosome 14. 14q21 is closer to the centromere than 14q22.


Sometimes, the abbreviations "cen" or "ter" are also used to describe a gene's cytogenetic location. "Cen" indicates that the gene is very close to the centromere. For example, 16pcen refers to the short arm of chromosome 16 near the centromere. "Ter" stands for terminus, which indicates that the gene is very close to the end of the p or q arm. For example, 14qter refers to the tip of the long arm of chromosome 14. ("Tel" is also sometimes used to describe a gene's location. "Tel" stands for telomeres, which are at the ends of each chromosome. The abbreviations "tel" and "ter" refer to the same location.)


Types of gene

Various types of gene have been discovered. Structural genes determine the biochemical makeup of the proteins. Regulator genes control the rate of protein production. Architectural genes are responsible for the integration of the protein into the structure of the cell. Temporal genes control the time and place of action of the other genes and largely control the differentiation of the cells and tissues of the body.



An allele is one of two or more variant forms of a gene at a particular locus, or location, on a chromosome (Figure 2). Different alleles (Gr. allelon = "of one another") produce variation in inherited characteristics such as hair color or blood type. In an individual, one form of the allele (the dominant one) may be expressed more than another form (the recessive one).


Gene expression

Gene expression is the process by which proteins are made from the instructions encoded in DNA.



A genome is all the DNA contained in an organism or a cell, which includes both the chromosomes within the nucleus and the DNA in mitochondria. Each parent, through its reproductive cells, contributes its genome to its offspring. Genomics is the branch of genetics concerned with the study of genomes.
